Product Description
How Our Portable Line Borer Solves On-site Machining Challenges.
The Powerful, Proven and Reliable On-Site Boring & Facing Solution for Cement Plant Equipment, Large Structures and Heavy Equipment.
Our BB35600 portable line borer is purpose-designed for on-site machining and repair of cement plant equipment, large structures and heavy equipment. It provides a flexible and cost-effective solution for fine machining, restoring worn, misaligned or deformed bores without dismantling large components.
With its a wide boring range from 35 mm to 600 mm, the portable line boring machine covers most common bore repair requirements found in cement production facilities, including crushers, rotary kilns, mills, conveyors, and heavy support structures.
The available power options have electric, servo motor or hydraulic, the portable line boring tools adapt easily to different site conditions and power availability. The optional facing attachment can expand its capabilities, which allow both line boring and face machining to be completed in a single on-site set-up.
Our portable line borer significantly reduces downtime, maintenance cost, and production losses in cement plants by avoiding the need of workshop transport.
Cover Your Common Line Boring Tasks with One Mobile Line Bore Machine, Bring The Greater Convenience for On-site Machining Conditions
Key Advantages
- Wide Boring Capacity (35 mm to 600 mm)
Covers small to large bore repairs commonly found in cement plant machinery, reducing the need for multiple machines.
- True Portable Design for On-Site Machining
Compact structure allows easy transport and installation directly on cement plant equipment, even in confined or elevated areas.
- Electric Motor, Servo Motor or Hydraulic Power Options
The flexible power units are as options for providing reliable operation under different site conditions and plant power configurations.
- Optional Facing Attachment
The line boring facing head expands repair capability beyond standard line boring for enabling on-site line boring and bore face machining.
- Reduced Downtime & Maintenance Cost
All machining work is performed on-site for minimizing the need for equipment disassembly, transportation, and production interruption.
Machining Capabilities of Portable Line Borer
- Line boring of deformed, worn, or oval bores
- Restoration of bore diameter and roundness
- Accurate coaxial alignment correction of multiple bores
- Machining after welding or material buildup
- On-site line boring and bore face machining (optional facing head for boring machine)
Typical Cement Plant Applications
Our JDA portable line boring machine is widely used for on-site repair of, such as:
- Crushers and crusher housings
- Rotary kiln support and bearing bores
- Ball mills and vertical mills
- Conveyors and roller assemblies
- Gearbox and structural mounting bores
- Cement plant steel structures and frames
How to Choose Power Unit Type?
- Electric Drive
It is ideal for cement plants with stable power supply, which offers clean operation and precise control.
- Hydraulic Drive
The hydraulic power is preferred for heavy-duty applications or sites for providing strong torque and stable cutting performance.
Why Portable Line Boring for Cement Plant Maintenance?
- Equipment remains in place during repair
- Shorter maintenance shutdowns
- Lower total repair and logistics costs
- Improved alignment accuracy
- Extended service life of critical components
Ideal For
- Cement plant maintenance departments
- On-site repair and service contractors
- Heavy industrial maintenance teams
- Facilities aiming to reduce outsourcing and downtime
Product Specification
| BB35600 | |
| Boring Bar Diameter | Ø60 mm & Ø30 mm |
| Boring Bar Length | 2000mm,2500mm,3000mm,3500mm,4000mm,5000mm, |
| Boring Diameter Range | 35 mm to 600 mm |
| Drive Power Unit | electric motor, 230V/110V, 50/60Hz, servo motor, hydraulic power |
| Boring Stroke | 400 mm, 600mm, 900mm, |
| Auto Feed Rate | 0-0.5mm/rev |
| Mounting Kit Support | single arm type, double arm type, |
| Optional Line Boring Facing Head | two types, 80-380mm, 200-650mm |

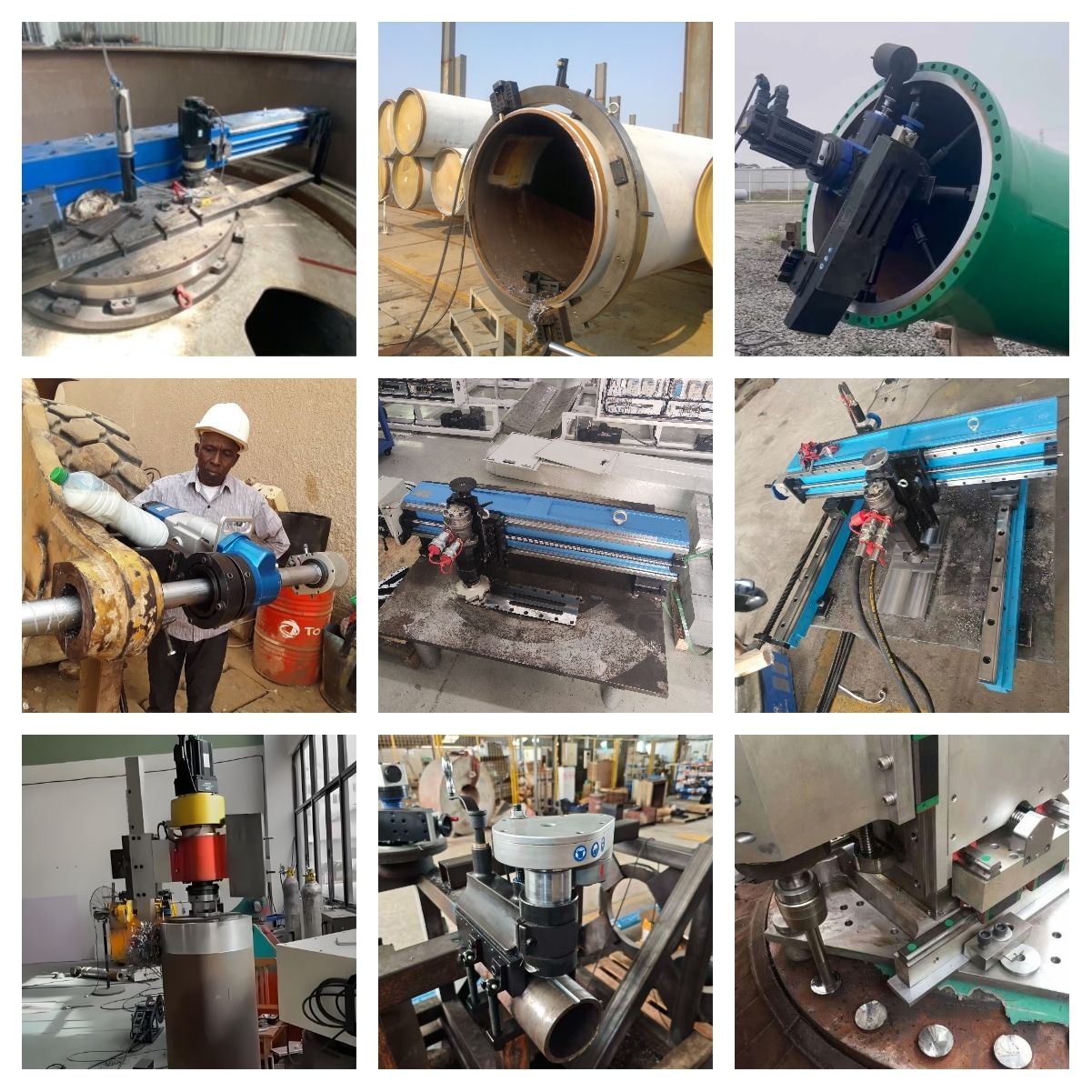

Other Related In-situ Machining Equipment We Have
What Is The Price of Your Portable Line Borer?
Price typically ranges will be USD 2,440 - USD 76,040 based on the specified model selection and configuration.
FAQ
Q: What bore diameter range can a line bore machine handle?
A: It depends on the specific model. Portable line boring machines typically cover small to large bore ranges with different bar sizes and accessories for various repair requirements.
Q: Is portable line boring equipment suitable for repairing oval or elongated holes?
A: Absolutely. Line boring tools is one of the most effective methods for restoring oval, worn, or deformed bores. The holes are restored to the correct roundness and size for proper pin or bushing installation.
Q: Can the alignment correction of multiple bores be machined in one set-up?
A: Yes. One of the key advantages of portable boring machine is the ability to machine multiple coaxial holes in a single alignment for ensuring perfect bore alignment and reducing assembly issues.
Q: What power options are available for inline boring machine?
A: Portable line boring machines are commonly available with electric or hydraulic drive options for allowing flexibility based on job-sites' power availability and working conditions.
If you do not know which type of portable line boring equipment you should choose?
Tell us your bore diameter, application, and site conditions.
Our engineers will help you decide the right solution.
