Product Description

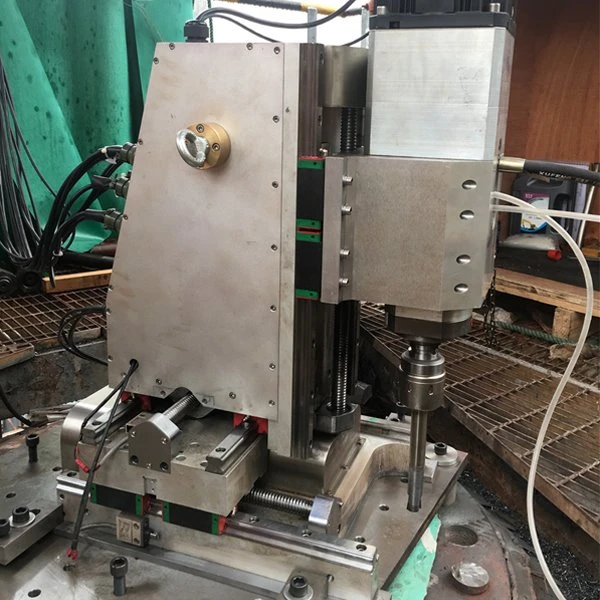

The JDA PT305 portable CNC thread milling machine is an alternative to CNC milling machines for machining internal threads. It is ideally used to remove the broken studs and re-machine new threads on the fixed equipment that are difficult or not allowed to remove in the complicated on site machining applications.

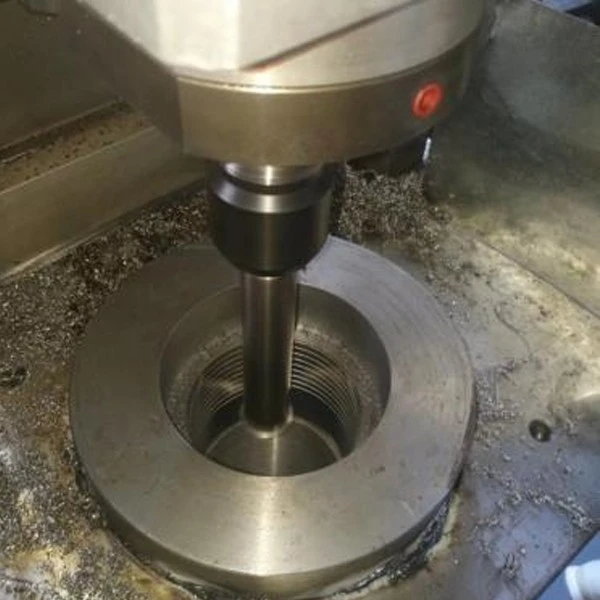

The portable thread milling machine features a reliable Siemens CNC operating system, providing assurance for precision threading operation. It is a 3 axis thread milling machine. Its cutting tool of the CNC threading machine moves along the spiral path movement to achieve precise and consistent machining operations for cutting internal threads.
The main technical parameters of the PT305 portable CNC thread milling machine is as following:
1, Milling spindle head power option: servo motor,
2, X axis, y axis, and z axis feed mode: automatic feed,
3, X axis, y axis, and z feed power option: servo motor,
4, X axis travel length: 150 mm (5.9 inch),
5, Y axis travel length: 150 mm (5.9 inch),
6, Z axis travel length: 305 mm (12 inch),
7, Rotation speed of milling spindle head: 0 to 3000rpm,
8, CNC operating system: Siemens
9, Operating weight: 246 kg,
10, Shipping weight: 360 kg.
The portable CNC thread milling machine has versatile functions including threading, drilling, milling, and boring operations by using appropriate cutting tools and accessories. The CNC thread cutting machine makes broken studs removal and re-threading much easier and simpler in the field machining applications, reducing the difficulty of maintenance for on site heavy equipment repair.
The portable CNC thread mill machine is equipped with a mounting base to allow the operators to fixate it quickly by bolts. We are also capable of helping our customers manufacture a tailored mounting base for certain specific field applications.
If you have any other questions on the portable CNC threading milling machine or other special machining requirements that I have not mentioned above, please contact our engineers to confirm whether it is feasible.
FAQ
Q: What is the CNC control system of your portable CNC thread milling machine?
A: The portable CNC threading milling machine utilizes CNC operating system.
Q: What can I do with the portable thread milling machine?
A: You can perform broken studs removal and cut new internal threads.
Q: How do I install the portable CNC threading machine?
A: You can install it by bolts and mounting base.
Q: Can the portable CNC threading milling machine perform working on the equipment in horizontal position?
A: Yes, it can perform working on the equipment in horizontal position.
Q: What is the stroke length of x axis?
A: The stroke length for the x axis is 150mm.
Q: What is the price of your portable CNC threading milling machine?
A: The price of our portable CNC thread milling machine typically ranges will be USD 93,000 - USD 123,000, subjecting to the specific models and the configured components.
Q: Do you have other model of the portable CNC thread mill machine?
A: Yes, we also have another bigger model about CNC threading milling machine.
Q: Can you provide a demonstration on the portable thread milling machine?
A: Yes, we can provide a demonstration on the portable CNC threading machine via video or in our plants.
Q: Do you have the portable CNC thread cutting machine available?
A: No, we need manufacture it after the customers finalize the purchase order and send payment.
Q: How long will the fabrication time take?
A: The portable CNC threading machine will take estimated 30 to 45 days to complete the manufacturing.
