Product Description

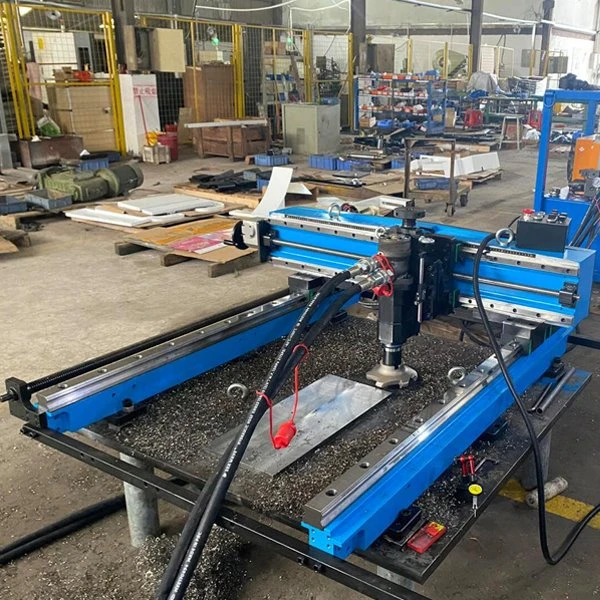

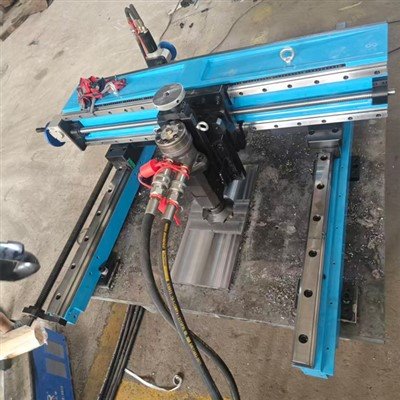

The JDA PG1000 portable gantry milling machine is a heavy duty milling machine, ideal for on-site machining companies in fabrication, repair, and maintenance industries across a vast of industries including shipbuilding, offshore, power plants, steel plants, etc..
The portable gantry on-site milling machine is a powerful and reliable solution for on-site large surface milling machining and heavy-duty milling applications. It combines portability, high rigidity, and high precision to meet the demands of the complex industrial maintenance and repair projects.
The portable gantry large surface milling machine is driven by a 3 output hydraulic power station, which provides power for rotation in milling spindle head and automatic feed motion in x axis and y axis.
The portable gantry milling machine is configured to hydraulic power system, offering strong and consistent power supply for large size surface milling machining and high load milling jobs, ensuring the machining efficiency, high precise flatness and surface finish.
Besides the hydraulic power system, the customers also have other power options including servo power system and pneumatic power system to adapt to the different on site conditions.
Both x axis and y axis of the portable gantry mill utilizes auto feed motion method for helping the operators handle the field demanding situations easily. All operations controls can be achieved through a remote control pendant.
The PG1000 portable gantry milling machine is configured to travel length 1000 mm (39.3 inch) of x-axis, travel length 1000 mm (39.3 inch) of y-axis, travel length 150 mm (5.9 inch) of z-axis. And the optional milling spindle head has the ability to clamp maximum face mill cutter head 250 mm (9.8 inch) in diameter. It is ideal for the urgent on site machining repairs and the projects with tight deadlines.
The portable field machining gantry mill machine is a preferred and cost-effective solution for on site field machining companies in large-scale milling applications including large structural surface machining, immovable equipment, steel plant rolling mill archway, etc.
If you still have other questions on the portable gantry mill machine, Please feel free to contact us. We will provide you the professional technical guidance.
FAQ
Q: Can you manufacture x axis travel 2000 mm and y axis travel 1500 mm for your portable gantry milling machine?
A: Yes, we can custom x axis travel and y axis travel length of our portable gantry mill.
Q: What is the available power options of your portable gantry mill?
A: The available power options include hydraulic drive system, servo drive system, and pneumatic drive system.
Q: Do you have gantry milling machine in stock for shipping?
A: The gantry milling machine usually needs to be customized.
Q: Which on site machining equipment can be used for structural surface machining?
A: We have various portable milling machine as options, the suitable portable linear milling machine can handle structural surface milling machining jobs.
Q: Are able to manufacture portable magnetic linear milling machine for me?
A: Yes, we actually manufactured magnetic portable milling machine for our clients before.
Q: How much do you charge for your onsite gantry milling machine?
A: The price of our portable gantry milling machine typically ranges will be USD 19,013 - USD 130,013, subjecting to the specific models and the configured components.
Q: Are your portable line boring machine able to do back-up roller mounting hole repair?
A: Yes, you can try to utilize our portable line boring equipment for back-up roller mounting hole repair.
Q: How do I perform steel plant roller bore machining?
A: The steel plant roller bore machining is able to performed by our portable line boring equipment.
Q: Do you have customers who use portable boring machines to perform rolling mill bearing housing repair?
A: Yes, we have customers who bought portable line boring equipment for rolling mill bearing housing repair.
Q: Can your portable gantry mill machine be used on offshore platforms?
A: Yes, our on site gantry mill machine is built with rigidity and strict seal adapt to different circumstances.
