Product Description
The JDA MM3500i portable flange refacing machine is specifically designed for on-site machining applications and repair of flange surfaces, helping restore sealing performance without removing equipment from service. It is able to to handle multiple flange types and repair scenarios directly on-site.
The portable flange facing machine is standard configured for machining functions of both single point cutting and milling to adapt to different machining requirements of the flanges. The function of single point machining is mainly used for machining flange sealing surface including raised face, RTJ groove, gasket surface, etc. The function of milling is mainly used for mounting surface.
You can choose MM3500i portable flange refacing machine with both single point cutting and milling, single point cutting only, or milling only according to your actual machining requirements.

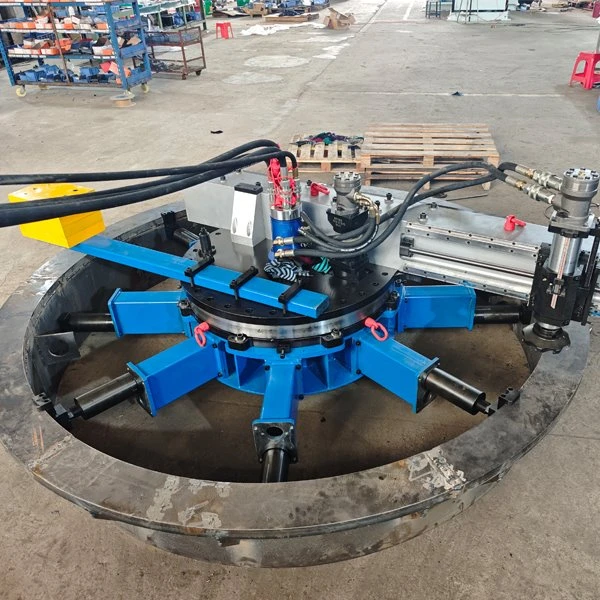

The portable flange facer machine adopts internal clamping as the installation method. It can achieve ID mounting diameter range from 1143 to 2998 mm (45 to 118 inch) with the equipped extended support legs. The facing diameter range of JDA MM3500i portable flange facing equipment will be from 1150 to 3500 mm (45.2 to 137.7 inch).

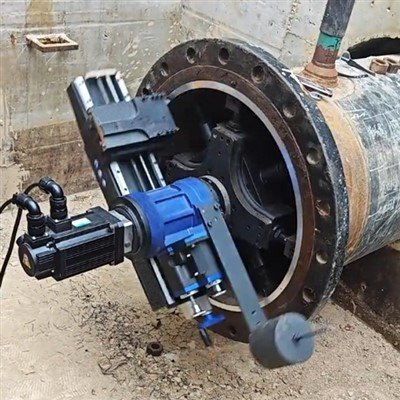

The standard power option is 25 HP hydraulic power pack, making it deal for high intensive machining work, ensuring continuous stability and consistent precise in tough machining environments. And servo motor is optional available as optional power unit for some customers who require a smaller size power unit.
When the in situ flange refacing machine is equipped with milling function, the milling size can be maximum up to 250 mm if the customers choose nt50 taper milling spindle head with a cutter 250 mm diameter, making it perfectly suitable for milling operations on large size flange surface.
The JDA on site flange facing machine combines the precision of traditional workshop lathes and its own flexibility to fit to the needs of the complex and diverse in situ flange machining repair applications.
The core components of on site flange facing tool utilize forging spindle and high precision bearing rotation base. Its robust structure for keeping stability, accuracy and durability in the long term demanding field machining environments.
If you are searching out a in situ flange facing machine with lightweight, portability, efficiency, versatility, affordability, and durability for the harsh on site flange facing repair applications.
The JDA in situ flange facing machine is the ideal solution for your on-site repair and machining needs.
FAQ
Q: Which machining method does your on site flange refacing machine utilize?
A: Most of them utilize single-point machining, other larger models utilizes milling machining.
Q: What is RTJ groove machining?
A: RTJ (Ring Type Joint) groove machining is a precision process to restore or create sealing grooves for high-pressure flange connections.
Q: What are the RTJ groove repair solutions?
A: Yes, our on site flange facing equipment can repair RTJ groove perfectly.
Q: Which industries are RTJ groove machining widely used in?
A: RTJ groove machining process is widely used in oil and gas, offshore platforms, and high-pressure pipeline systems, where sealing reliability is critical.
Q: What types of flanges can be machined?
A: The typical flange surfaces are FF, RF, RTJ, MF, etc.
Q: What is the price of your portable on site flange facer machine?
A: The price of our on site flange refacing machine typically ranges will be USD 2,565 - USD 390,007 depending on the specified models and configuration.
Q: What flange sizes can the machine handle?
A: We manufactured the largest one that can machine maximum up to 6000 mm in diameter, and the customized flange facing machine is accepted.
Q: Are your portable machine tools suitable for field machining?
A: Yes, our on site machining equipment is designed for field machining applications directly on the pending repaired equipment.
Q: How portable is your in situ flange facing machine?
A: The smallest one is only 7 kg, and other bigger on site flange facer machine is modular design and lightweight each component. So it is easy to carry, install and perform.
We aim to be your reliable partner for portable machining solutions on harsh in situ machining challenges.
