Product Description
The JDA MM1650i portable flange facing tool is able to deliver strict seal performance on flange connections to prevent leakage. Its versatility enables all operators to machine flange faces, OD chamfer, chamfer of counterbore, counterbore, RTJ grooves, MF face, V grooves, and other machining operations on old flanges. And the portable flange facing machine can also create new sealing surfaces on new flanges for pipeline manufacturing companies.
The portable flange facing equipment is internally expanded and secured within the flange bore ranging 483 to 1500 mm (19 to 59 inch) in diameter. The included two mounting bases, jacking support legs and adjustable support legs makes the installation easier because they allow operators to have mounting base and legs options for different flange bore range.
The JDA MM1650i portable flange facing tool adopts a single-point cutting method. It can perform working diameter range from 500 to 1650 mm (19.6 to 64.9 inch). The portable flange facer machine is designed and manufactured with advanced technology. It is able to deliver accuracy same as workshop machining. The flange facer tool makes flange machining work easier and faster especially for in situ industrial flange maintenance and repair services.
The rotation cutting arm of portable flange refacing machine is made of high premium aviation aluminum, keeping lightweight yet rigid. It will help a lot during the hoisting and installation process while maintaining cutting accuracy.
The rotation base of JDA MM1650i portable flange facing tool adopts high-precision bearings and is assembled together according to strict assembly clearance requirements by our experienced workers with maximum up to 15 years of industry experience.
The rotation cutting arm has been sandblasting oxidation treatment and other parts have been blackened treatment to prevent rust, extending the lifespan of the flange refacing tool as much as possible.
The hydraulic driven flange facing machine will be a perfect choice if the flange machining work is frequent, long-term, and large-scale. The hydraulic station provides stable power and high torque output for achieving better cutting performance. Secondly, it is servo power driven flange facer machine.
If you have other flange refacing or surfacing work we do not mentioned, please consult with us for more further communication to confirm to confirm which flange facer machine can be taken as a solution for you.
FAQ
Q: What mounting method do you use for your flange facing tool?

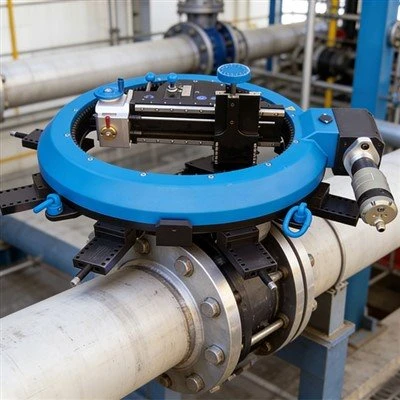

A: We id mount flange facer and od mount flange facer for flange machining work within different in situ machining conditions.
Q: Are you able to customize portable machining equipment for contractors based on specific machining projects?
A: Yes. As a manufacturer of field machining equipment with extensive experience, we have encountered all sorts of harsh on-site processing challenges. We successfully manufactured in situ machines that perfectly matched our clients' projects. And it ultimately solved the customer's problem such as flange facing, on site line boring, portable align boring, keyway slotting on shaft, on site milling pump base, and so on.
Q: What is the milling stroke of portable linear milling machine?
A: The milling stroke of our portable line milling machine can be customized according to onsite milling operations.
Q: What is the mounting methods for your field milling machine?
A: Our field portable milling machine is able to be mounted directly on the pending machined workpiece or customized fixture by bolts. Magnetic base installation is also an option.
Q: What is the price of your portable flange face machine?
A: The price of our portable flange facing tool typically ranges will be USD 2,561 - USD 390,003 depending on the specified models and configuration.
Q: What is the facing diameter range for your manual flange facing facer machine?
A: We have two models of manual flange facing machine with facing operations ranging 25.4 to 350 mm (1 to 13.7 inch) and 15 to 223 mm (0.6 to 8.8 inch) in diameter.
Q: Do you have portable machines for stud removal and cnc thread milling operations?
A: Yes. Our CNC thread milling machine is designed for on site stud removal and cnc thread milling operations.
Q: Do you offer flange facing machine rental services?
A: Yes. We can rent our portable flange facing equipment and other field machining equipment to our customers.
Q: Can you do some changes based on your on site machining equipment for on site machining companies to adapt to the specific machining jobs?
A: Yes. Actually we already did some machines like coupling hole line boring machine, pipe keyway cutting machine, etc.
As a manufacturer of in situ machining equipment with extensive experience, we are happy to share our experiences and help you get your in situ machining operations done efficiently and reliably.
JDA portable on site machine tools will never let you powerless.
Consult with us today.
