Product Description
Our portable line boring kit is a complete and mobile machining solution designed for precision bore repair directly at the job site. It is built based on modular and portable design concepts, the kit integrates all essential components for accurate line boring. It allows technicians to restore worn or misaligned bores without removing or transporting large components.
Unlike fixed workshop machines, this kit is engineered for field use. Its structure is compact, lightweight, and easy to assemble, it is ideal for on-site repair in construction sites, mines, industrial plants, and remote locations. The system is driven electric power. It provides flexible mounting methods for ensuring stable machining performance under real-world conditions.
By combining portability, precision, and ease of use, the portable line boring kit provides a practical and cost-effective solution for equipment owners and onsite machining service companies which are looking for reducing downtime and extending equipment life.
Product Specification
|
MB40300 |
|||
|
Portable Line Boring Kit |
|||
|
Standard Line Boring Ability |
Optional Extended Auto Bore Welding Ability |
||
|
Boring Bar Length |
1600mm, 1200mm, 750mm |
Welding Rod Dia. |
40mm |
|
Bore Dia. |
40-300mm |
Welding Dia. |
40-300mm |
|
Boring Bar Dia. |
50mm,35mm |
Welding Rod Length |
200,240,300,380mm |
|
Lead Screw Stroke |
280mm |
Welding Supply |
MIG |
|
Power |
3.1KW |
MIG Type |
200a-500a |
|
Voltage |
220V, 380V |
Welding Wire Dia. |
0.8, 1.0, 1.2mm |
|
RPM |
50-300rpm |
Welding Torch Cable |
4500mm |
|
Torque |
105N.m |
N/A |
N/A |
|
Speed Control |
Stepless |
N/A |
N/A |
Product Advantages
- True portable design concept
- Complete kit for field operation
- Versatile mounting and installation
- High machining accuracy on site
- Faster repair turnaround
- Easy operation and fast learning curve
Multi-Application Machining Capabilities
- Corrects misalignment between multiple bores
- Machines several aligned bores in one setup
- Pin joints and pivot assemblies
- Returns bores to original or specified dimensions
- Ready for bushing and pin replacement
- Optional weld buildup for severely worn bores

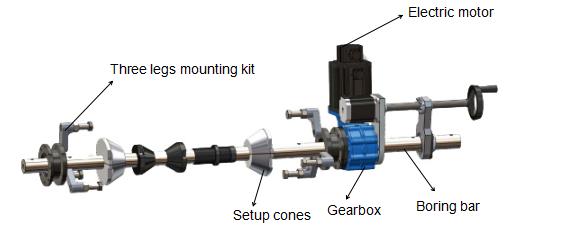

The structure of Portable Line Boring Kit
The Certificates and Patents of Our Company
What Accessories Are Included in The Portable Boring Kit?
The standard accessories are included in the portable boring kit, such as boring bar, mounting kit support, motor, drive unit, feed lead screw, remote control, control box, tools, operating manual, and cutters. The optional accessories of auto bore welding are available.
FAQ
Q: Does in situ boring require special workshop facilities?
A: No. It requires only basic power supply and little workspace, it ideal is for remote locations.
Q: Can on site boring be performed in confined spaces?
A: Yes. Compact design allows machining to be performed in limited-access and tight environments.
Q: How is bore alignment ensured on site?
A: Alignment is achieved using precision mounting fixtures, bearings, and alignment tools, ensuring coaxial accuracy.
Q: Is in situ boring safe to perform on site?
A: Yes. it will reduce risks associated with heavy lifting, transportation, and re-installation if the proper procedures are followed.
Q: What Is The Cost of Portable Line Boring Kit?
A: There have some models of portable boring machines as options. The price range is from USD$2,625 to USD$3,025 for various models. The accurate price is subjected to the exact model.
Please contact us and a suitable machine will be recommend to you if you are looking for portable machining tools.
