Product Description
Our horizontal line boring is a perfect line boring solution designed for accurate on-site bore repair in limited working spaces. It is excellent for machining applications of small to medium bore where traditional shop machining is neither practical nor costly.
By performing line boring directly on the equipment, this worn, elongated or misaligned bores can be restored without dismantling large components, significantly reducing downtime and repair cost. It can perform working with limited setup space. This feature makes it ideal for field service, maintenance teams, and mobile repair operations.
Installation Direction
The line boring machine is usually installed in horizontal direction. But it is also capable of performing bore machining in other directions, such as vertical, tilted direction or other angle direction.
Designed for On-Site Repair
The horizontal line boring is built to operate reliably in real job-site conditions. Its lightweight and modular design allows to do easy transportation and fast installation, even in confined areas such as excavator arms, cab, buckets, linkages, and equipment frames.
The system can be mounted directly on the work piece by weld-on or bolt-on for ensuring precise alignment and stable machining performance during on-site operations.
Compact and Rigid Structure
Although it is compact size, the machine has a rigid mechanical structure that keeps consistent cutting accuracy. High rigid components ensure smooth boring operations, proper concentricity, accurate bore alignment correction, and correct pin and bushing fit after repair.
Its perfect combination of portability and rigidity makes it a practical solution for frequent on-site repair tasks.
Easy Setup and Operation
The horizontal line bore machine is designed with ease of use in mind. Simple alignment methods, intuitive controls, straightforward operate system and convenient tool changing operation reduce setup time and allow operators to complete repairs efficiently.
It is suitable for both experienced machinists and new onsite machining service teams to portable line boring. So it is an excellent entry-level solution for expanding on-site machining capabilities.
Typical Applications
- Excavator buckets, booms, and arms
- Loader and backhoe pin bores
- Attachment connection points
- Equipment frames and brackets
- Small structural bore repairs
Main Advantages
- Compact and portable for confined spaces
- In situ line boring capabilities
- Reduced downtime and transportation costs
- Fast setup and reliable operation
- Cost-effective solution for small bore repairs
Product Specification
|
MB55160 |
|||
|
Horizontal Line Boring |
|||
|
Standard Line Boring Ability |
Optional Extended Auto Bore Welding Ability |
||
|
Boring Bar Length |
1600mm, 750mm |
Welding Rod Dia. |
40mm |
|
Bore Dia. |
55-160mm |
Welding Dia. |
40-300mm |
|
Boring Bar Dia. |
50mm |
Welding Rod Length |
200,240,300,380mm |
|
Lead Screw Stroke |
280mm |
Welding Supply |
MIG |
|
Power |
3.1KW |
MIG Type |
200a-500a |
|
Voltage |
220V, 380V |
Welding Wire Dia. |
0.8, 1.0, 1.2mm |
|
RPM |
50-300rpm |
Welding Torch Cable |
4500mm |
|
Torque |
105N.m |
N/A |
N/A |
|
Speed Control |
Stepless |
N/A |
N/A |

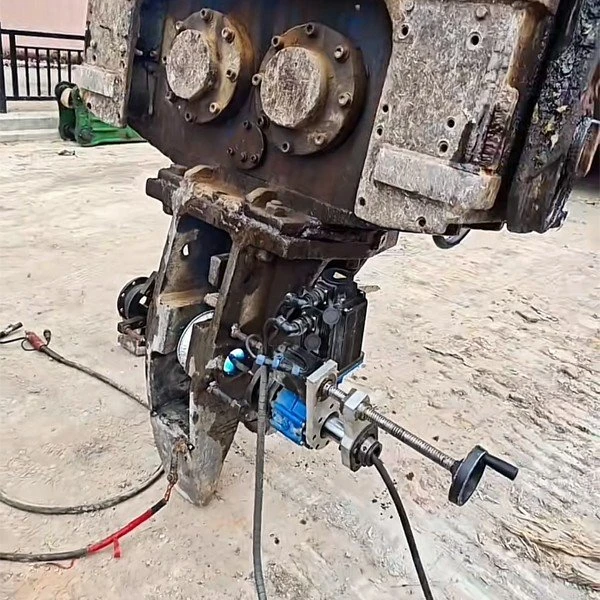

Real Line Boring Applications Feedback by Customers
How to Buy Your Portable Machining Machine Tools?
We kindly recommend that you talk to us firstly for getting a suitable and cost-effective machine tools for your working operations.
What is The Cost of Horizontal Line Boring?
The price range will be USD 2,630 - USD 3,030 depending on the specified model you decide lastly.
FAQ
Q: Is line boring machine more cost-effective?
A: Although the initial investment may be higher, it can be recovered cost quickly cause there have continued demand for boring in the market.
Q: Which industries benefit most from portable line boring?
A: Construction equipment, mining, heavy industries, shipbuilding, and industrial plant maintenance.
Q: Is horizontal line boring suitable for beginners?
A: Yes. on site line boring simplifies operation, it is much more easier for less experienced operators to achieve consistent results.
Q: Can in situ line boring machine handle heavy-duty applications?
A: Yes. We also have heavy duty line boring machines available which are designed for continuous operation and high cutting loads.
Tell Us The Bore Diameter Requirements
Get a Portable Line Boring Machine Matched to Your Applications.
