Product Description
Leading Professional Manufacturer of Portable Line Boring Machine, Ideal for On-site Machining.
Arm yourself with On-site machining ability.
Precision line boring at the job site - saving time, cost, and equipment downtime.
Our portable line boring is crafted for performing repair or machining on-site. Especially, it is a perfect choice for repair in these industries, such as mining, construction, and marine, etc. It can be used to machine misaligned, worn or damaged bores for regaining precise alignment and diameter, which is crucial for engines, heavy equipment, large structures, and gearboxes.
In addition to the ability to restore single bore diameter and precise alignment correction along multiple bores, it also has other capabilities to fine-machine bores on the heavy industrial complexes, including large-scale infrastructure projects, bridges, steel frames, steel structures, port cranes, heavy manufacturing plants, steel mills, and power generations.
The characteristics of these industries or equipment result in difficulties and inconveniences in machining. Our portable line boring equipment offers convenience and possibilities for on-site machining. The featured advantages make it much more easier to tackle on-site machining challenges.
Our BB65600 portable line boring machine is supplied with high rigid boring bar, sturdy mounting support kit, advanced rotational drive unit (RDU), axial feed unit (AFU), diverse power unit options, and other relevant attachments. All configured parts are crafted in mind for adapting to different complex on-site working conditions in heavy duty equipment industries, field machining service industries, and heavy fabrication industries.
This model of our portable boring machine can deal with different bores at boring capacity of up to 600 mm (23.62 inch). The boring capability easily handles common bore diameters on the different equipment in multiple industries. Our portable line boring equipment can be extended to integrated bore repair system including inline boring and inner bore overlay welding. The optional facing head attachment can deal with surface with maximal facing diameter of up to 650mm (25.59 inches).
Portable Line Boring Machine Features
- Plenty Options of Boring Bar Length
The most selling boring bar length is 2000 mm for basic boring spacing among a single bore or multiple bores. Other boring bar length of 2500 mm, 3000 mm, 3500 mm, 4000 mm, 5000 mm, 6000 mm are available for some specific long boring spaces.
- Advanced Rotational Unit and Feed Unit
The rotational unit and feed unit can be mounted at any position on the boring bar, either side or center of boring bar. So JDA line boring equipment has more installation options to adapt to more machining positions.
- Flexible Power Unit Options
The preferred power unit is electric motor for small bores or small-scale machining. The hydraulic power unit is recommended if it is a large-hole boring or large-scale machining.
- Optional Facing Head Accessory
Two models of facing head accessories are as options. The smaller model can make facing diameter range from 80 mm to 380 mm (3.14 inch to 14.96 inch). The larger one can make facing diameter range from 150 mm to 650 mm (5.90 inch to 25.59inch).
- Extendable Boring Capacity
The boring capacity can be extended to minimal 35mm (1.37 inch) by adding a diameter φ30 mm boring bar and other matching accessories.
- Extendable Inner Bore Overlay Welding Ability
Our portable line boring tool can be extended to build-up welding function by working with our auto line bore welder machine. Some machinists will have more options for bore repair.
- Efficiency and Precision
Our portable line boring equipment adopts a modular design concept that provides possibilities of easy to storage and installation on-site. It greatly shortened the installation steps. The portable line boring tools has a robust structure and is made of rigid materials to ensure machining accuracy.

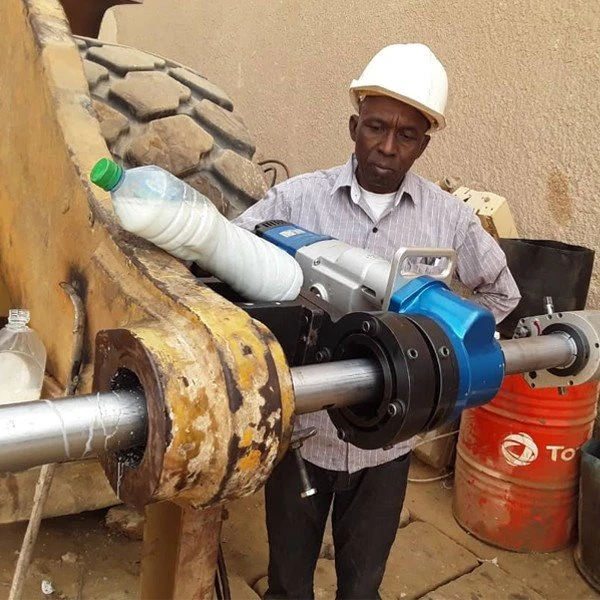

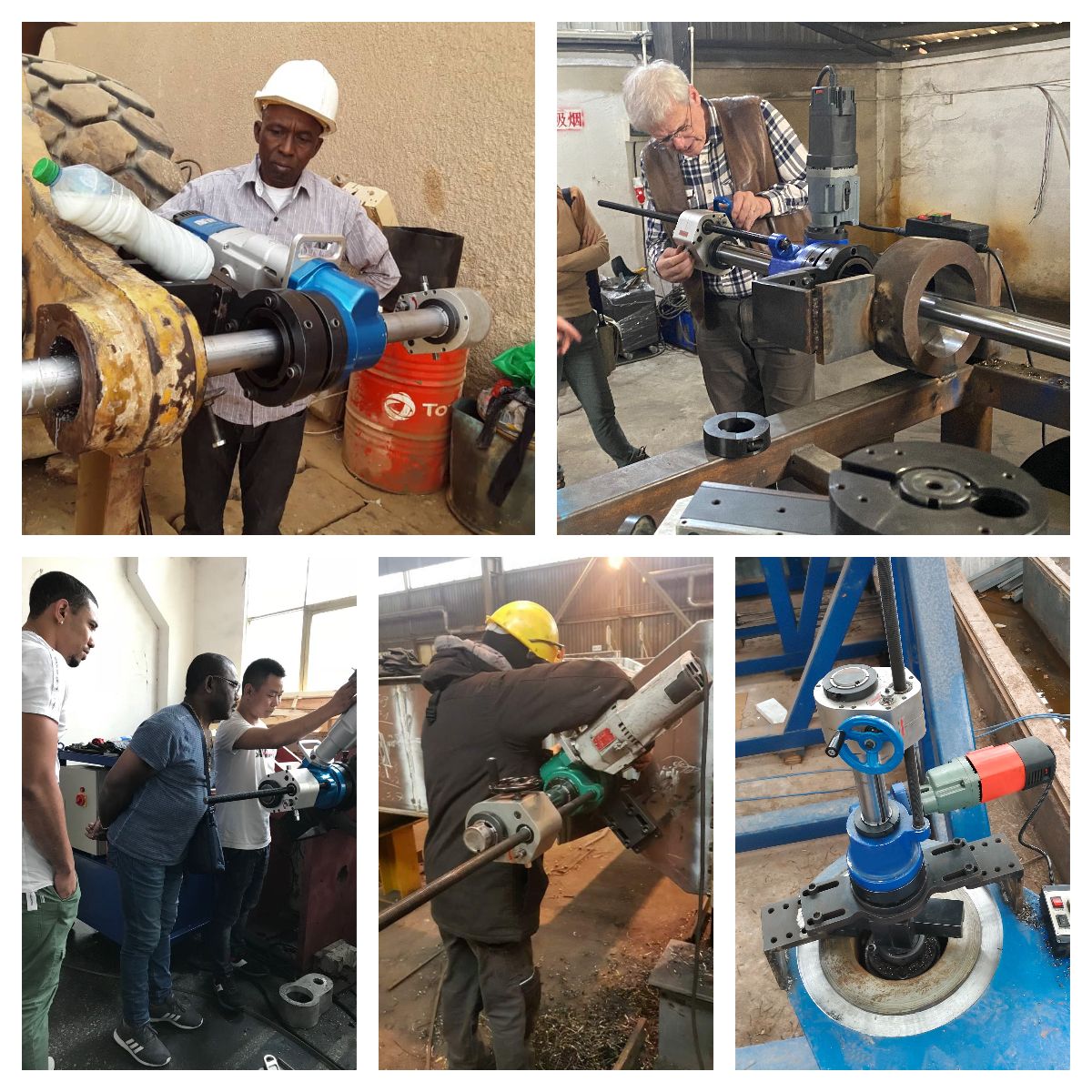

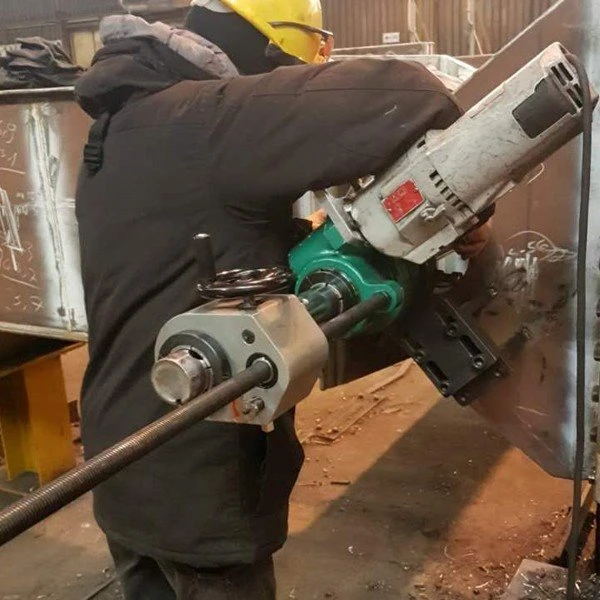

Real Clients' Applied Cases
Portable Line Boring Machine Specification
| BB65600 | |
| Boring Bar Diameter | Ø60 mm |
| Boring Bar Length | 2000mm,2500mm,3000mm,3500mm,4000mm,5000mm, |
| Boring Diameter Range | 65 mm to 600 mm |
| Drive Power Unit | electric motor, 230V/110V, 50/60Hz, hydraulic power |
| Boring Stroke | 400 mm, 600mm, 900mm, |
| Auto Feed Rate | 0-0.5mm/rev |
| Mounting Kit Support | single arm type, double arm type, |
| Optional Line Boring Facing Head | two types, 80-380mm, 200-650mm |
How Much Do Your Portable Line Boring Tools Cost?
Price typically ranges will be USD 2,441 - USD 76,041 based on the specified model. The final pricing depends on the setup and application.
Please talk to our sales specialists about your needs such as bore diameter, applied industries, operating frequency, and other necessary information. It will a great help for us to confirm the suitable model. We will continue to provide the technical support and solution on the difficult and complicated field machining challenges during your use our portable machines.
We also have other portable machine tools that are commonly used in in-situ machining service industry, including portable flange facing machine, portable flange circular milling machine, portable line boring machine, portable keyway milling machine, portable linear milling machine, portable gantry milling machine, portable portal milling machine, portable hydraulic drilling machine, portable shaft lathe, portable journal lathe, portable shaft turning machine, portable CNC threading machine, etc.
We also can custom the portable machines on your projects.
FAQ
Q: Can your portable boring machine be operated by one person?
A: Yes. Most smaller types of portable line bore machines are designed for easy setup and operation by a single technician. They are ideal for field service teams and maintenance crews.
Q: How long does on-site line boring typically take?
A: Repair time varies by bore size and wear condition, but on-site line boring time is significantly faster than by repair removing and transporting parts to a workshop. It often saves days or even weeks of downtime.
Q: Does line boring require build-up welding before machining?
A: It needs to be considered based on the on-site situation. Bore welding is often performed firstly to build up worn material in some cases, which is followed by precision line boring to restore the correct bore diameter and alignment.
Q: Can a portable line bore machine be used in harsh environments?
A: Yes. Portable line bore machines are built for harsh industrial conditions, including dusty, outdoor, and high-load environments such as mines, cement plants, and shipyards.
Contact our sales engineers about your bore diameter needs, equipment type, and on site conditions.
Our engineers will recommend the right portable line boring configuration and accessories for your on site repair needs.
