Product Description
The JDA PS30 portable lathe machine is a type of portable shaft lathe, which is widely applied to on-site turning and repair of shafts, journals, and cylindrical surfaces in various rotating equipment including crane, motor, pump, rolling mill, crusher, conveyor, compressor, and construction equipment.
The portable shaft lathe is commonly applied in different kinds of industries such as oil & gas, power generation, shipbuilding & offshore, mining industry, steel plants, cement plants, construction machinery, and general industrial maintenance. It provides an efficient and cost-effective solution for shaft restoration and precision machining jobs for equipment plants owners and on site machining services companies.
The PS30 portable lathe machine is powered by servo drive system with featuring automatic turning feed mode. It can perform turning operations within the shaft diameter ranging from 80 to 230 mm (3.14 to 9 inch).
The main technical data of the portable metal lathe is as following:
1, Power option: servo motor,
2, Working shaft range in diameter: 80 mm to 230 mm = 3.14 inches to 9 inches,
3, Turning stroke length: 300 mm = 11.8 inches,
4, Turning spindle rotation speed: 0 to 150rpm,
5, Surface finish: ra3.2,
6, Operating weight: 85 kg,
7, Shipping weight: 110 kg.

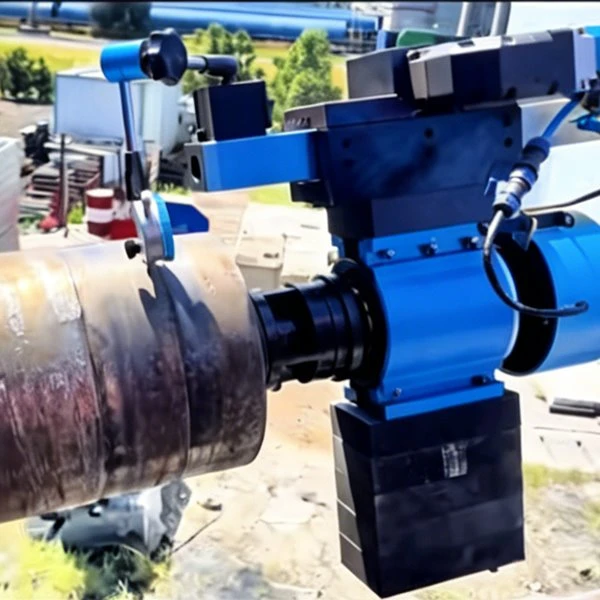

The portable lathe machine allows the on site operators to directly and quickly install it on the end of shafts by bolts, eliminating the need to disassemble the entire equipment, effectively simplifying the difficulty of maintenance, greatly enhancing machining efficiency.

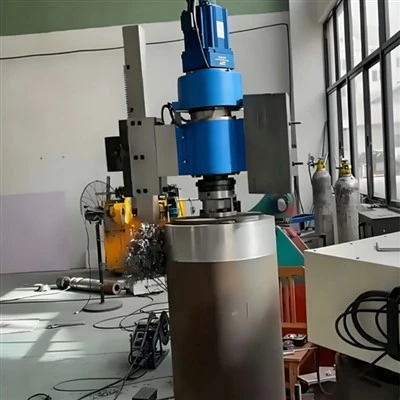

The portable turning machine is essential for on site heavy equipment repair on shafts. It can perform working on the shafts in vertical or horizontal position. The provided modular counterweight ensure optimal balance to be achieved. The operators can determine the number of counterweights based on the actual situation.
The portable shaft turning machine is a simple yet functional machine designed for on-site shaft repair in various equipment, ideally suitable for on site machining services.
The portable shaft lathe can act as on site machining solutions for field machining companies. We have various models of portable shaft lathe to adapt to shafts in different diameter. We also can custom field machining equipment for shafts repair in different projects.
FAQ
Q: What is the power supply of the portable lathe machine?
A: The shaft repair machine is powered by servo motor.
Q: What diameter shaft can the portable shaft lathe machine?
A: It can perform repairing on shafts from 80 to 230 mm in diameter.
Q: How long of shaft can the portable turning machine repair?
A: It can repair shafts up to 300 mm in length.

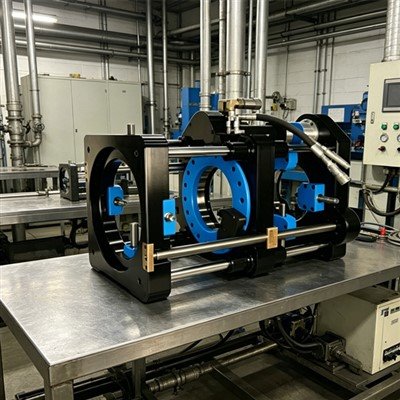

Q: Do you have portable journal lathe?
A: Yes, we have portable journal lathe for journal repair like rotor, rudder shaft, generator shaft, steam turbine shaft, etc.
Q: What is the weight of the portable shaft turning machine?
A: The net weight of the portable turning machine is estimated 85 kg.
Q: What is the price of your portable shaft lathe?
A: The price of our portable lathe machine typically ranges will be USD 13,000 - USD 16,000, subjecting to the specific models and the configured components.
Q: What is the package weight of the portable shaft lathe?
A: The package weight of the machine is about 110 kg.
Q: Can I use the portable shaft turning machine to repair compressor shaft?
A: Yes, the portable turning machine can performing repair on compressor shaft.
Q: How long will it take to ship the portable shaft machine out?
A: It will take estimated 7 days if there have it in stock.
Q: Can the portable shaft lathe machine repair crusher shaft?
A: Yes, you can use the machine to repair crusher shaft.
