Portable Reaming Machine

The JDA PR50 portable reaming machine is mainly used for machining flange connection holes, main engine base holes, bearing housing positioning holes, servo motor base positioning holes, rudder steering gear housing locating bore, etc. It is an ideal machining solution to the precision reaming jobs for on site repair companies across various heavy equipment.

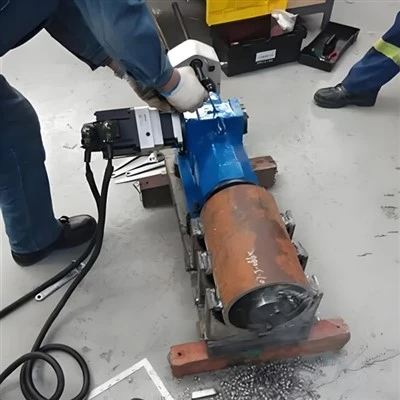

The automatic reaming machine is suitable for on-site boring and reaming operations of straight holes in steel, copper, and stainless steel materials. Its multiple model options to allow the users to choose different machine structure. So it can achieve different installation methods to adapt to different positions of the work piece.

The compact structure of the PR50 portable reaming machine allows the users to operate it easily even in confined spaces. An optional facing head assembly can be added for surface end machining of holes.

The main technical parameters of the portable reamer bore machine is as following:
1, Boring bar diameter: φ50 mm,
2, Machining range: 55 to 150 mm,,
3, Maximum machining depth: 250 mm,
4, Power unit: servo drive, hydraulic power pack, or pneumatic drive,
5, Axial feed rate: 0.048 to 0.05 mm continuously variable speed.

We also have other model options if the model is not able to fulfill your reaming needs.

The worm gear in the gearbox of the PR50 portable reaming machine is made of KK copper and centrifugally cast, which has the characteristics of good rigidity and wear resistance. The boring bar is made of integral alloy structural steel, which undergoes tempering, surface hardening, multiple stress-relieving tempering and surface electroplating with chromium, resulting in high strength and good wear resistance.

The deep hole reaming machine has these characteristics including portability, lightweight, high rigidity, high precision, and compact structure, exhibiting excellent stability, durability, and dynamic response. It boasts strong power and step less speed regulation with constant torque across all speed ranges. It has high cutting force capability, achieving a depth of cut up to 3mm single radius during roughing. And it can achieve high precision machining results with surface roughness of Ra1.6 to 3.2.

What is the price of the precision reaming machine?
The price of our portable reaming machine typically ranges will be USD 7,001
- USD 20,001, subjecting to the specific models and the configured components.
