Product Description

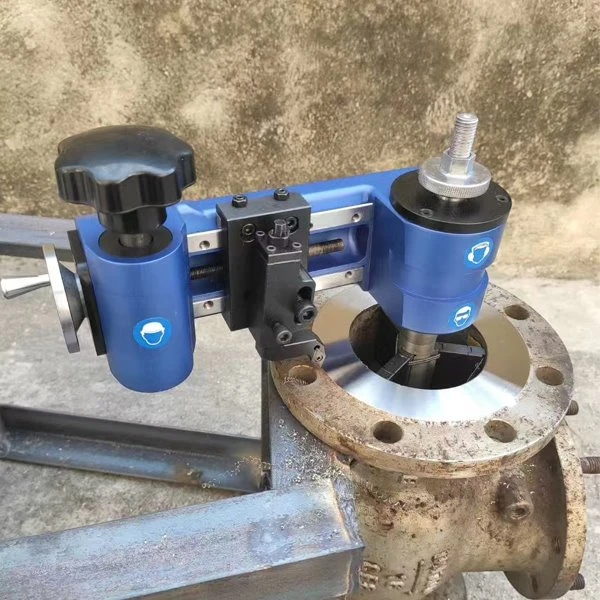

JDA manual flange facer machine is specially designed for onsite flange face repair. It adopts hand driven power, no rely on external power supply, which is ideally suitable for petrochemical and gas industries. Our portable, lightweight and compact hand driven flange facer is ideal for quickly resurfacing pipes and flanges in workshops fabrication or on-site machining.
Its versatile function is capable of performing restoration on flat face flange (RF flange), raised face flange (FF flange) and lens ring flange for achieving required flange sealing surface in piping industry.
The lightweight hand power flange facer weighs only 7 kg. And it is supplied with a suitcase for easy storage and carrying, the total package weight is only 14 kg. It features a self-centering expansion mechanism that locks securely inside the flange inner bore.
Our mini manual flange facer machine enables quick setup and machining to be completed by a single operator due to its user friendly mechanical mechanism design. The installation and machining process usually take only half an hour by the experienced operators. The operators can easily master it with just a few simple practice sessions according to operating manual.
The manual mini flange facer tool can recondition flange surface from 25.4 mm to 350 mm (1.0 inch to 13.77 inch) in diameter. Its compact structure ensures flange sealing surface repair to be completed within the tight spaces. It is particularly suitable for repairing small flange faces in oil, gas and pipeline industries.
Our hand powered manual flange facer is a cost-effective and excellent tool for flange pipe fabrication and on-site flange flange sealing face repair. It is supplied a complete of components including machine main body, tool holder, extension legs, feed lead screw, toolkit for ready to work.

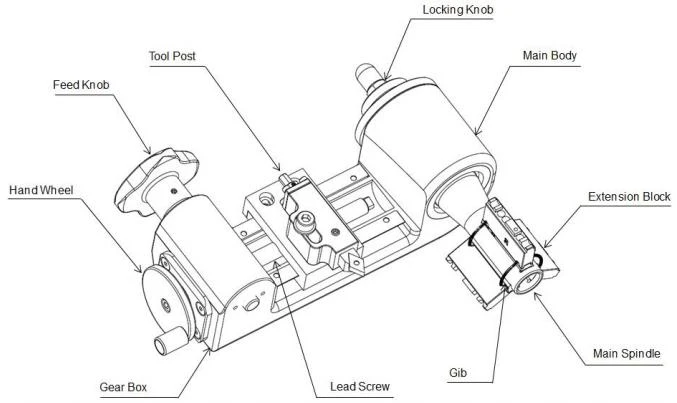

Machine Structure

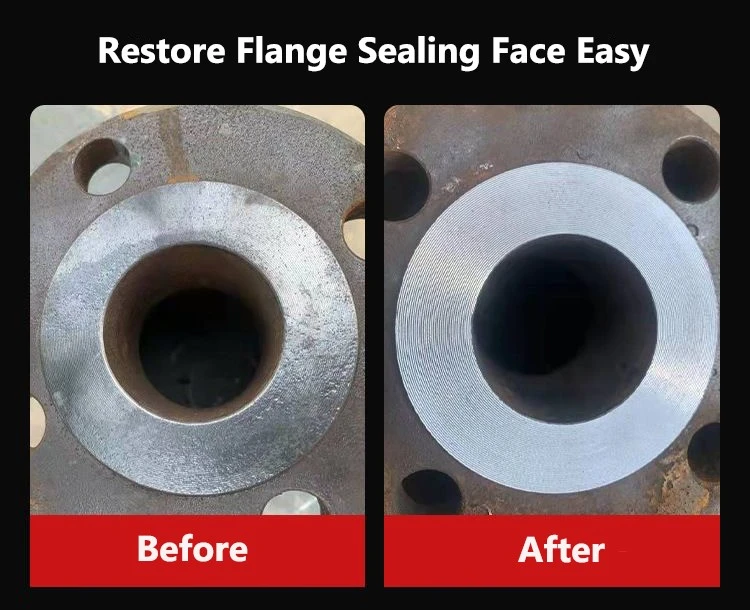

Flange Face Restoration - Before and After
FAQ
Q: What is your hand held manual flange facer machine used for?
A: It is a portable machining tool used for machining and restoring damaged or corroded flange surfaces directly on-site.
Q: Which industries commonly use manual hand held flange facer?
A: It is widely applied in oil & gas, petrochemical, power plants and heavy industrial maintenance.
Q: Can your manual flange facer be used for on-site machining?
A: Yes, it is specifically designed for on-site (in-situ) flange facing. It provides a new solution of flange sealing surface repair.
Q: What are the advantages of your hand driven flange facer?
A: Our hand power flange facer is more cost-effective, lightweight, and easy to operate, especially for small flange repair.
Q: What is the price of your mini flange facer machine?
A: The price of our manual flange facer machine typically ranges will be USD 2,598 - USD 2,964 depending on the specified configuration.
Q: What types of flange damage can your manual flange facing machine repair?
A: It can repair corrosion, pitting, uneven surfaces, surface wear and gasket seating damage on flanges.
Q: How is your hand flange facer mounted?
A: It is mounted by expanding inside the flange inner diameter by its own mechanism.
Q: Can your hand held flange facer ensure machining accuracy?
A: Yes. It can achieve high precision for gasket sealing surfaces if it is installed properly.
Q: Is manual operation difficult?
A: No. The machine features a simple structure. It is easy for operators with basic practice to use according to operating manual.
