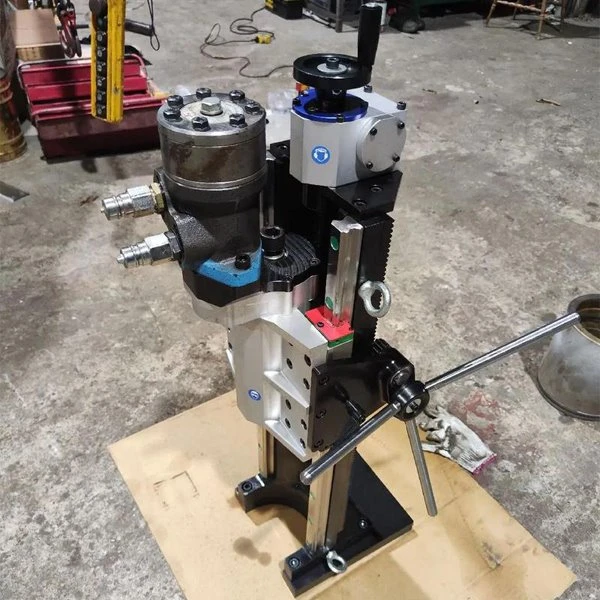

Product Description
The JDA PD40 portable hydraulic drill is designed specifically for heavy duty bores drilling applications including flange drilling, structural drilling, bolt hole drilling, precision drilling, deep hole drilling, post-weld drilling, pre-repair drilling, mounting hole drilling, etc.
The portable drilling machine allows the on site machining companies to handle drilling or boring applications with the proper tool accessories or customized attachments.
The portable hydraulic drilling machine is ideal for on-site drilling applications for field machining companies across manufacturing and repair industries. It is powered with dual output hydraulic drive system, which provides strong, stable, and constant power against high load drilling pressure. To a certain extent, it also has significant help in improving machining efficiency.
The portable hydraulic drill machine has both manual and automatic feed capabilities. And the machine is equipped with 2 options of feed rate for adapting to different bore sizes and rotation speed.
The main technical specification of the portable drill machine as following:
1, drilling stroke: 355 mm (14 inch),
2, power option: standard hydraulic, optional servo or pneumatic,
3, drilling head taper: mt5
4, maximum drilling diameter: 100 mm u drill,
5, maximum boring capacity: 150 mm core drill,
6, feed type: manual feed and automatic feed,
7, mounting methods: magnetic base, bolts, or welding,
8, operating weight excluding power unit: 100 kg.
The PD40 portable hydraulic drill machine is also can be configured to servo drive system or pneumatic drive system for the special working environment.

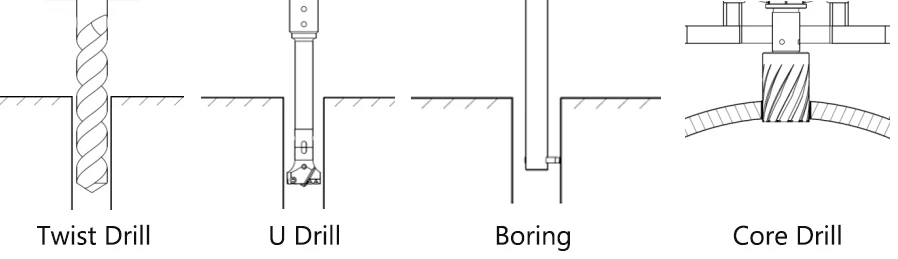

The portable hydraulic drilling equipment has multiple drill bit options including u drill, twist drill, core drill, or boring for meeting the different requirements of customers. When place order with us, please let us know drill bit type you need.
The portable drill machine can be mounted by magnetic base, bolts, or welding in vertical, upside down, or horizontal position. The auxiliary support is recommended to prevent the risk of falling when it is mounted in horizontal position.
FAQ
Q: What is the other power of your portable hydraulic drill machine beside hydraulic?
A: Servo or pneumatic drive system is optional power option, besides hydraulic drive system.
Q: What is the portable hydraulic drilling equipment used for?
A: It can used for performing drilling on mounting holes, bolt holes, flange holes, and structural holes on industrial equipment and steel structures.
Q: What are the main advantages of the portable drilling equipment?
A: It is able to perform on site drilling applications.
Q: Can the portable vertical drilling machine be used on-site?
A: Yes, it is specifically designed for on site drilling applications.
Q: Which industries can your portable drilling machines be used?
A: Our portable drilling machines be used in oil & gas, construction, shipbuilding, mining, power plants, and heavy equipment repair.
Q: What is the price of your portable drilling machine?
A: The price of our portable hydraulic drill machine typically ranges will be USD 21,000 - USD 25,000, subjecting to the specific models and the configured components.
Q: What types of holes can the portable drill equipment drill?
A: It can drill blind holes, through holes, bolt holes, and precision positioning holes.
Q: What materials can the portable vertical drilling machine drill?
A: It can drill on equipment in aluminum, carbon steel, stainless steel, cast iron.
Q: Can the portable hole drilling machine drill large diameter holes?
A: Yes, it can perform drilling large diameter holes depending on the machine model and tooling.
Q: Can it be used for flange drilling operations?
A: Yes, it can be used for flange bolt hole drilling as long as it is fixed.
