Product Description

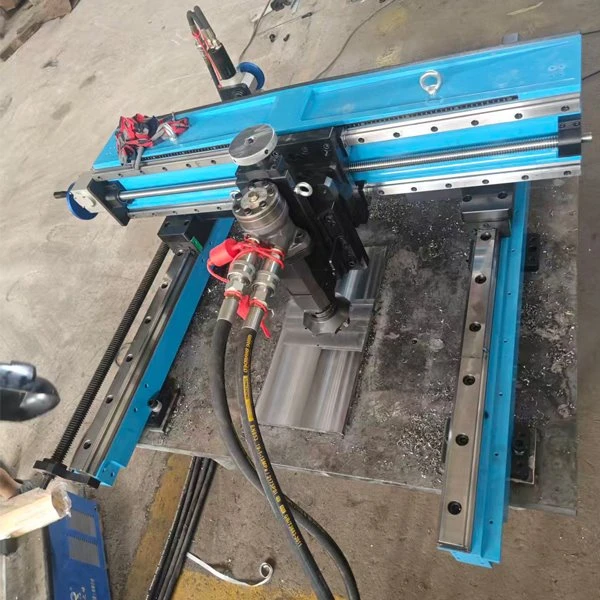

The JDA PG2000 portable gantry mill machine is an ideal heavy-duty on-site machining solution designed for large surface milling, equipment base machining, weld removal, and structural repair. Featuring a gantry-type structure, the portable gantry milling machine provides exceptional rigidity and stability, making it ideal for machining jobs on large components or stationary equipment directly on-site without dismantling.
The portable gantry milling system is widely used by on-site machining companies across these industries such as oil & gas, shipbuilding, power generation, mining, steel plants, offshore platforms, and heavy equipment maintenance service, where the precision and efficiency are critical.
The portable large gantry milling machine is manufactured with high precision linear guideway and ball screw drive systems. The linear guideway offers high precision guidance, low friction, high rigidity, high repeatability, and long service life. The ball screw offers high transmission efficiency, high positioning accuracy, zero backlash with preload, smooth motion, and precise feed control.
The portable gantry mill machine with the high precision linear guideway and ball screw drive system is suitable for heavy duty milling and high precision machining jobs, ensuring smooth motion, stable machining performance, overall machining efficiency, accurate feed control, and strict tolerance surface finish.
The standard power unit of the portable gantry milling machine is hydraulic pack with fully auto feed motion in x axis, y axis, and spindle head. And other power unit is also accepted.
The technical details of the portable gantry milling machine include:
1, x axis stroke length 2000 mm (78.7 inch),
2, y axis stroke length 1500 mm (59 inch),
3, z axis stroke length 150 mm (5.9 inch),
4, nt40 or nt 50 milling spindle head,
5, hydraulic power pack,
6, face mill cutter head options: 80 mm, 100 mm, 125 mm, 160 mm, 200 mm, 250 mm.
The PG2000 portable gantry mill machine is ideal for field machining companies to tackle complex demanding on site milling jobs for urgent repairs and regular routine. The operators are capable of finishing all installation steps and machining operations precisely and efficiently. It is also a great assistance for the fabrication plants It is also a great help in the manufacturing of large equipment.
So no matter you are machining contractors, field machining companies, or fabrication shops, the portable gantry mill helps in tackling the toughest on site surface milling problems, reducing installation process, and enhancing machining efficiency.
FAQ
Q: What are the parts list included in your portable gantry mill machine?
A: The milling arm, milling bed, milling spindle head, and power unit are included in the main parts list.
Q: Which package type do you use for your portable gantry milling machine?
A: The standard package type is sturdy exporting wooden box.
Q: How do I adjust the level of the portable gantry mill?
A: The mounting base has its own fine leveling adjustment function.
Q: Can I use your portable onsite gantry milling machine for large base milling?
A: Yes, our portable field gantry milling machine is ideal for large base milling jobs.
Q: What is your portable gantry milling machine?
A: Our portable gantry milling machine is an on-site machining solution designed for large surface milling and heavy-duty machining using a gantry-type structure.
Q: What is the price of your portable in situ gantry milling machine?
A: The price of our portable gantry mill machine typically ranges will be USD 19,014 - USD 130,014, subjecting to the specific models and the configured components.
Q: What is your portable in situ gantry milling machine used for?
A: Our portable field gantry milling machine is used for machining large equipment bases, structural surfaces, and mounting surfaces directly on-site.
Q: What are the main advantages of the gantry field milling machine?
A: Our gantry field milling machine has greatly adaptability, offering high rigidity, large machining capacity, on-site operation, reduced downtime, and cost savings.
Q: Can your gantry portable milling machine be used on-site?
A: Yes, the gantry portable milling machine is specifically designed for on-site large size surface milling machining without dismantling large equipment.
Q: What industries do the onsite gantry milling machine serve?
A: The onsite gantry milling machine widely serves oil & gas, power plants, shipbuilding & repair, mining, steel mills, and structural equipment surface milling.
