Product Description

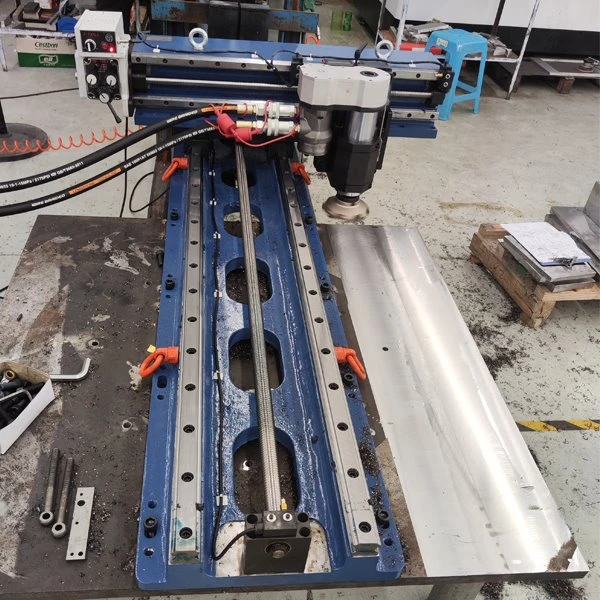

The JDA PC2000 portable metal milling machine is engineered for high precision milling performance with the compact footprint and rigid structure. The portable steel milling machine driven by hydraulic power system can perform high duty milling works including plane surface recovery and machining, and keyway milling jobs. It is commonly used as an effective and reliable repair method including pump base milling, motor base plate milling, gearbox mounting surface repair, turbine split line milling, etc.
The portable milling machine is a three axis milling machine with the different bed structure and the added Y-axis. It is an upgraded model of our portable linear milling machine. The portable steel milling machine is a priority solution for plane surface restoration and processing from in shop fabrication to field repair service.
The main technical specifications of the PC2000 portable metal milling machine include x-axis stroke 2000 mm (78.7 inch), y-axis stroke 300 mm (11.8 inch), and z axis (vertical direction) stroke 150 mm (5.9 inch). The single-sided milling dimension should include the Y-axis travel and the milling cutter head size.
The design of widened milling bed frame ensures stable feed to be achieved. And The bed frame is hollowed out to reduce unnecessary weight for improving the ease of installation and operations. It will help so much for on site machining companies in the field harsh machining situations.
The customers have the flexibility of power option of the PC2000 portable metal milling machine. The hydraulic drive is followed by servo drive, last option is pneumatic drive. The hydraulic power provides stable power output and strong torque. The pneumatic drive is preferred choice for flammable and explosive environments, limited power supply environments, and high humidity environments.
When the customers choose hydraulic power drive system, the supplied hydraulic oil hose is with coupling connector for connecting hydraulic motor and hydraulic power station quickly, making the field repairs efficient efficient.
If you want to purchase portable milling machine with specific needs like power supply, milling stroke, milling cutter size, etc., please send us an enquiry to finalize all needed specifications for customizing it.
FAQ
Q: Is your portable metal milling machine able to repair turbine split line?
A: Yes, our portable steel milling machine can performing repair on turbine split line.
Q: Can you portable milling machine restore gearbox mounting surface?
A: Yes, our portable milling machine can handle gearbox mounting surface restoration.
Q: Can I require longer x axis stroke for your on site milling machine?
A: Yes, you can choose x axis stroke length for our linear milling machine and portable gantry milling machine.
Q: Does have a complete set of components for your portable steel milling machine driven by hydraulic power?
A: Yes, it includes all necessary components for ready to work.
Q: Are you portable steel milling machine able to work within field harsh machining situations?
A: Yes, portable steel milling machine can work within field harsh machining.
Q: How much does your field milling machine cost?
A: The price of our portable metal milling machine typically ranges will be USD 19,006 - USD 130,006 depending on the specified models and configuration.
Q: Which power options do you have for your on site portable milling machine?
A: There have three power options: hydraulic, servo, and pneumatic drive.
Q: What is the payment term for your on site portable milling machine?
A: The available payment term is bank transfer.
Q: What is the package type for your portable mobile milling machine?
A: Yes, the standard package type is wooden box for all of our on site machining equipment.
Q: Are you able to custom portable machining equipment according to my projects?
A: Yes, we actually have customized some on site machining equipment for many customers.
