Product Description

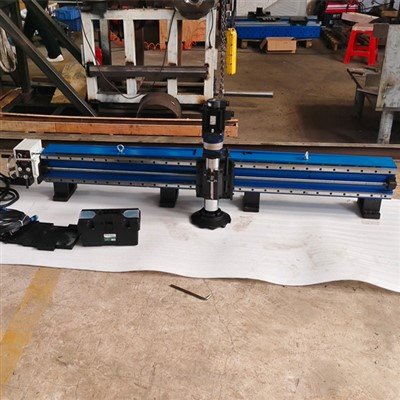

The JDA SM500 small portable milling machine is an advanced and mobile tool for keyway milling works, and small surface milling and repair on-site and in workshop. The portable small milling machine is fully driven by hydraulic power system including milling spindle head, x axis feed type, and y axis feed type. We also are able to do modification or customization on field machining equipment.
The portable field milling machine is with 3 axis. And the mobile milling machine integrates manual feed and automatic feed together. The hydraulic power system and automatic feed system are perfect for a large number of small area machining operations and on-site surface milling jobs with the limited operating space.
The SM500 small portable milling machine is manufactured with x axis travel of 500 mm (19.6 inches), y axis travel of 200 mm (7.8 inches), and z axis travel of 150 mm (5. inch). The rotation rpm of milling spindle head is at the range of 0 to 700. It is designed with mt3 taper can clamp maximum face mill cutter head 80 mm (3.1 inches) in diameter.
The standard power drive system options of the portable 3 axis milling machine are hydraulic or servo. The power is supplied with 7.5 kw pump station if the customer require hydraulic power system. And the power is supplied with 1.7 kw motor if the customer requires electric power system.
The standard mounting method of the SM500 small portable milling machine utilizes magnetic base. The magnetic mounting method allows the operators are able to operate on-site surface milling, keyway milling, and welding removal comfortably on the plane surface. The optional clamp mount assembly is available for keyway milling on a shaft.
The mobile portable milling machine is an extraordinary and portable tool for on site machining companies ltd. It is a superior solution for small surface milling, mounting surface milling, base plate milling, optional keyway cutting in a shaft. It help the field machining companies handle milling operations with ease, improve machining efficiency, and save cost.
FAQ
Q: What can your small portable milling machine be used for?
A: Our portable small milling machine can be used for on-site surface milling, base plate milling, keyway milling, and welding removal.
Q: What boring diameter does onsite line boring for heavy equipment can achieve?
A: Our on site line boring machine for heavy equipment can achieve the maximum boring diameter of 3000 mm.
Q: Do you have portable flange facing machine for repair Z drive flange?
A: Yes, we have portable flange milling machine for performing facing for repair Z drive flange.
Q: Which models of your in situ boring machine is suitable for crane pin bore repair?
A: Please tell us crane pin bore diameter, then we can advice you a proper model for your needs.
Q: Does your portable milling machine perform mounting surface milling operations?
A: Yes, we can recommend you the suitable portable milling machine according to the required surface milling size.
Q: How much is your in situ portable milling machine?
A: The price of our small portable milling machine typically ranges will be USD 19,009 - USD 20,009, subjecting to the specific models and the configured components.
Q: Are you able to custom and manufacture a fixture for your on site mobile milling machine?
A: Yes, we can help you do it if you really need it and pay us cost for the fixture.
Q: Do you have portable hand held milling machine in your company?
A: Yes, our portable hand held milling machine is manual feed, ideal for small size surface machining and keyway milling.
Q: Are you able to manufacture portable shaft keyway cutting machine?
A: Yes, we have standard portable keyway cutter for shaft keyway cutting jobs.
Q: Do you portable flange facer machine for on-site flange repair?
A: Yes, we have a variety models of in situ flange facing machine tool for fulfill on-site flange repair jobs.
