Product Description

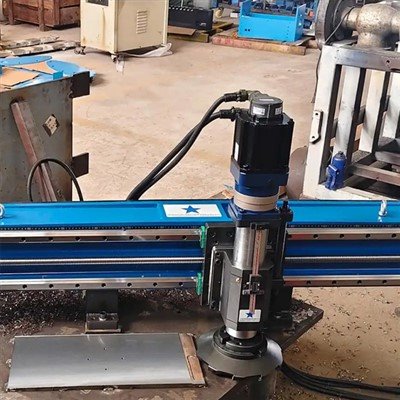

The JDA PB6000 portable onsite milling machine is a custom linear milling machine, designed for one of our customer based on their specified on site milling working. The portable milling machine can easily handle small sized flat surface, weld bead machining, and keyway milling operations. It is a superb on site machine tool for field machining companies and metalworking equipment fabrication.
The PB6000 portable in situ milling machine can achieve a milling travel length of 6.5 meters at one time setup. It is such a long milling travel length, ideal for small sized but longer milling operation requirements. The milling travel can also be customized to other lengths, shorter or longer.
The travel length in vertical direction of the PB6000 mobile onsite milling machine is 200 mm. It allows the operators to use face mills and end mills in different sizes for the on site specific milling works.
The bed frame of the on site portable milling machine is made from forging materials, providing the strength and rigidity for strict milling tolerance control.
The customer chose a fully servo drive system for their custom field milling machine, servo driven spindle head and automatic feed in milling travel length direction, because their milling operations is not high load. One operator can easily operate it after the on site portable milling machine is installed.
In addition, the PB6000 onsite milling machine also has a power option of drive hydraulic ideally for heavy-duty surface milling operations on large equipment and structural components.
The on site portable milling machine features high precision linear guide and rack on the bed frame for ensuring the smooth, stable and consistent feed to achieve the reliable surface finish and flatness.
The unique design of the mount base allows the operators to level the in field milling machine efficiently and accurately. The installation method involves welding the mounting plates and bolting the mounting bases. The whole process is easy to operate and can be completed within one to two hours.
FAQ
Q: Am I able to get a longer onsite milling machine as this one?
A: Yes, we can custom portable milling machine for longer machining travel as per your needs.
Q: Is your field milling machine easy to transport?
A: Yes, the machine is modular and designed for easy transportation.
Q: What power options are available for your in place milling machine?
A: The power options of our portable milling machines are by electric, pneumatic, or hydraulic drive.
Q: Which is the ideal power option for on-site machining service?
A: Hydraulic and electric drives are preferred choices.
Q: Can your portable milling machine work within explosion-proof areas?
A: Yes, pneumatic drive portable milling machines can be used in explosion-risk environments.
Q: How much do you charge for your in situ milling machine?
A: The price of our portable onsite milling machine typically ranges will be USD 19,003 - USD 130,003 depending on the specified models and configuration.
Q: What are the voltage options of power drive for your electric portable milling machine?
A: The available voltages of our electric portable milling machine can be as options including 380V, 415V, 480V, and 575V.
Q: Does your portable metal milling machine require large power supply?
A: No, our portable milling machines typically require standard industrial power supplies.
Q: Can I use your portable steel milling machine to machining heat exchanger split groove?
A: Yes, our portable linear milling machine is capable to machining heat ex-changer split groove.
Q: Do you have field milling machine for internal keyway cutting?
A: Yes, we have some standard portable milling machines for cutting internal keyway milling operations. We also can custom portable internal keyway cutting machine based on the specific keyway milling requirements.
