Product Description

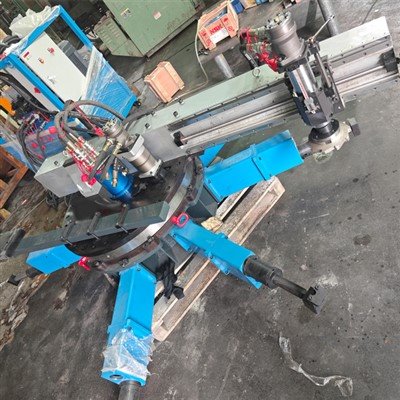

The JDA MM6500i portable circular milling machine is a custom field machining equipment for field machining companies. It is an outstanding, powerful, versatile and portable on-site machining tool, built for large diameter flange circular machining applications, like flange surface milling, sealing surface machining, groove milling, and equipment mounting surface machining.
The MM6500i field circular flange milling machine is widely used for repairing and machining large flanges and equipment connection surfaces directly on-site without dismantling equipment, especially ideal for crane bases, cradle bearing bases, wind tower fabrications, heavy duty construction and mining, etc..
The MM6500i portable circular milling machine is an preferred solution for in shop or on-site flange machining, surface milling, and equipment mounting surface repair. It is engineered to provide accurate, efficient, reliable, and cost-effective machining solutions for various industrial maintenance and repair applications.
The portable flange milling solution helps various industries improve machining efficiency, lower maintenance costs, and reduce downtime during equipment repair and installation.
The portable circular mill handles a wide range of facing diameter from 2600 to 6500 mm (102.3 to 255.9 inch). And the inner diameter mounting range of flange bores is from 2600 to 6000 mm (102.3 to 237.1 inch).

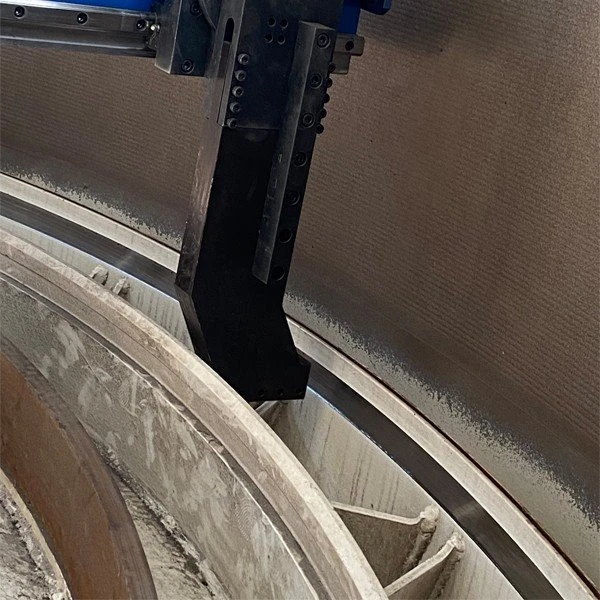

For aligning with customer field machining needs, the portable circular flange milling machine has two configurations as options: single point machining operations or milling machining operations. Different configurations perform corresponding field machining applications. The single-point machining operations is mainly used for ring sealing groove machining.
The MM6500i circular milling machine utilizes pre-loaded high precision bearing to eliminate internal clearance and improve spindle rigidity. It ensures higher machining accuracy, better surface finish, reduced vibration, and more stable cutting performance during heavy-duty flange milling operations.
The rotation milling arm can be adjusted to suitable fixed position to adapt to different rotational spaces.

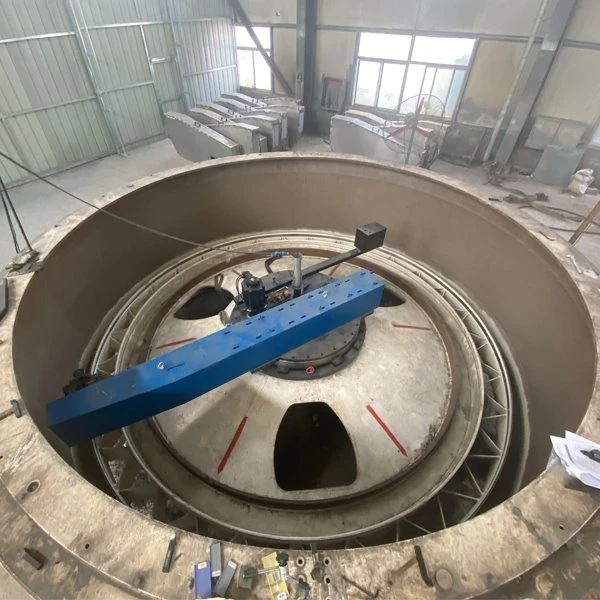

The mounting system with leveling feet enables the operators to center and level the circular mill easier, fast and accurately after the circular mill machine is mounted in the flange bore.
The portable circular mill machine has different configuration options: inner diameter mounting, face mounting or outer diameter mounting to adapt to the machining requirements of different work-pieces.
The optional spindle mounting swivel plate enables the milling spindle head to rotate 360°.
The optional grinding head is also can be configured for fine grinding and surface sealing finish based on customers' requirements.
The supplied adjustable counterweight ensure the precise balance can be achieved, especially for vertical milling position.
The portable flange milling machine also has the different cutter to achieve the maximum milling size per revolution. The maximum cutter 250 mm in diameter is available if the milling spindle head is manufactured with #50 tapper.
Please WhatsApp us message directly or complete the inquiry form with the required information, if you still have other questions on the field flange milling machine.
FAQ
Q: Can your circular milling machine be used for equipment mounting surface machining?
A: Yes, our flange milling machine is a field proven solution for repair machine motor bases, pump bases, and gearbox mounting surfaces.
Q: How is your flange circular mills machine mounted?
A: Our portable circular mill can be mounted using inner diameter (ID), outer diameter (OD), or fixed base mounting systems subjecting to the customers' configuration.
Q: How long does it take to set up the flange facing milling machine?
A: Setup time is typically short and can be completed within a few hours subjecting to the working conditions and operator's skill.
Q: Can the portable field circular mill operate in different positions?
A: Yes. It can operate in horizontal, vertical, and inclined positions.
Q: Do you have portable flange facing machine used for heat exchanger flange machining?
A: Yes, our portable flange facer machine is commonly used for machining heat exchanger flanges and sealing surfaces.
Q: How much does your flange milling machine cost?
A: The price of our flange circular milling machine typically ranges will be USD 2,571 - USD 390,011 depending on the specified models and configuration.
Q: Do you have portable flange refacing machine suitable for pipeline flange repair?
A: Yes, we have multiple models of flange refacing machine suitable for pipeline flange repair.
Q: What are the advantages of your portable flange resurfacing machine?
A: It can reduce downtime, lower maintenance cost, eliminate transportation, and improve machining efficiency.
Q: What surface finish can be achieved by your portable flange facing tool?
A: Our portable flange facing tool can deliver smooth and uniform surface finishes suitable for industrial sealing standards.
Q: How to choose the right portable flange facing equipment?
A: You should consider flange size, required power machining type, working conditions, and industry requirements before selecting flange refacing tool.
