Product Description
The JDA MM5000i portable flange milling machine is engineered for field machining services on that equipment are not allowed or too massive to be removed and transported to machine shops for conducting repair. When it gets out of control for the tradition repair method, our portable flange mill machine plays its unparalleled role for on site machining.

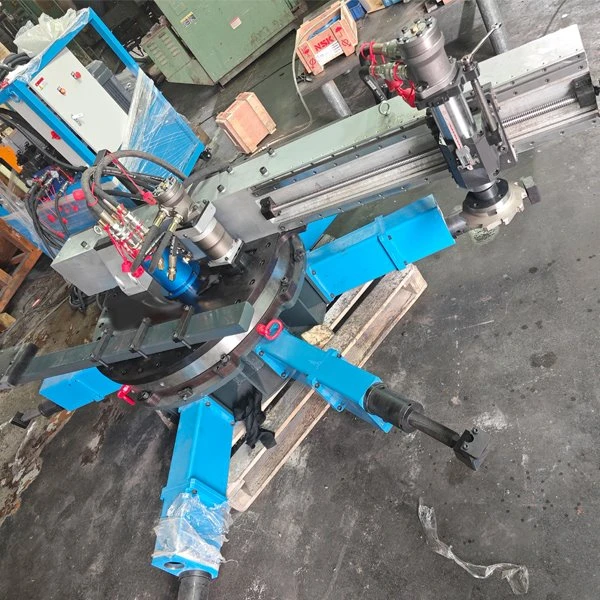

The MM5000i portable circular milling machine is built for on site machining services, specially for cradle bearing bases, crane pedestals, large diameter face milling, wind tower bases, etc. The portable flange circular milling machine delivers high precision milling performance at the highest industry standards, ideally fitting to achieving accurate surface flatness and surface finish for ensuring proper sealing and equipment alignment.
The JDA MM5000i portable circular flange milling machine covers a wide range of flange circular milling applications ranging from 2000 to 5000 mm (78.7 to 196.8 inch) in diameter. With its sturdy and rigidity construction, the MM5000i portable circular mill machine provides high precision machining capability, making it an ideal solution for large diameter flange circular milling jobs.
With its own supplied ID mounting kit, the MM5000i portable circular milling machine can be mounted inside flange bores ranging from 2000 to 4500mm (78.7 to 177.1 inch) in diameter. Keeping such a powerful flange facing Milling machine, you can handle almost all types of large diameter flange milling applications. It is a preferred solution for field machining companies.
The MM5000i field flange milling machine can be configured for single point cutting machining or milling machining as per customers' requirements. The single point cutting machining is used for machining applications on sealing ring grooves, chamfering and phonographic surface finish treatment. And the milling machining is used for mounting surface milling.
For achieving high precision machining performance of the on site circular milling machine as much as possible, the hydraulic drive is preferred for the configuration of milling machining type, and the servo drive is recommend for single point cutting machining.
The field circular milling machine is equipped with a controller pendant both hydraulic drive and servo drive, enabling the on site operators to perform a series of operations fast, including rotation speed adjustment, power on, emergency stop, forward and reverse at a safe distance.
FAQ
Q: What is a on site flange milling machine?
A: The in situ flange circular mill machine is a portable machining tool mainly used for milling flange surfaces, sealing faces, and equipment mounting surfaces.
Q: What is your flange circular milling machine used for?
A: It is ideal for on-site machining, repair, and resurfacing of flanges and equipment connection surfaces, like crane base, large structural equipment mating face, wind turbine tower connection surfaces.
Q: What is the difference between flange mill machine and flange facing machine?
A: Portable flange facing machine focuses on different sealing surface machining and grove machining, while portable flange mill focuses on large diameter milling machining. They are different machining methods.
Q: Can your portable circular mill machine be performed on-site?
A: Yes, Our portable circular mills machines are designed for in-situ machining, eliminating the need to dismantle equipment..
Q: What industries use flange circular mill machines?
A: Yes, our in situ circular milling machine are widely used in power generation, shipbuilding, mining, steel plants, and power plants.
Q: What is the price of your circular flange mills?
A: The price of our flange milling machine typically ranges will be USD 2,570 - USD 390,010 depending on the specified models and configuration.
Q: What machining operations can your portable field machining equipment perform?

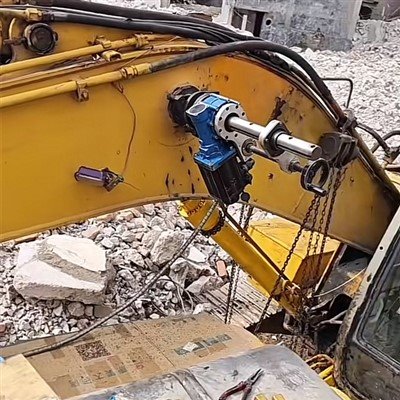

A: Our portable portable field machining equipment can perform ling boring, drilling, tapping, flange facing, flange milling, shaft machining, on site milling, etc..
Q: Do you have portable machine mill flange sealing surfaces?
A: Yes, we have portable flange circular mill machine and portable flange facer machine for different sealing requirements.
Q: Can your flange facing equipment machine O-ring grooves or sealing grooves?
A: Yes, our portable flange facing tool can handle different types of sealing grooves, RTJ grooves, O ring grooves, and lens ring.
Q: Can your portable flange refacing machine perform RTJ groove machining?
A: Yes, our portable resurfacing machine can handle RTJ groove machining and other types of grooves.
JDA field machining equipment empowers the users to tackle a variety of field machining problems easily and efficiently.
Contact us to get product brochure now!
